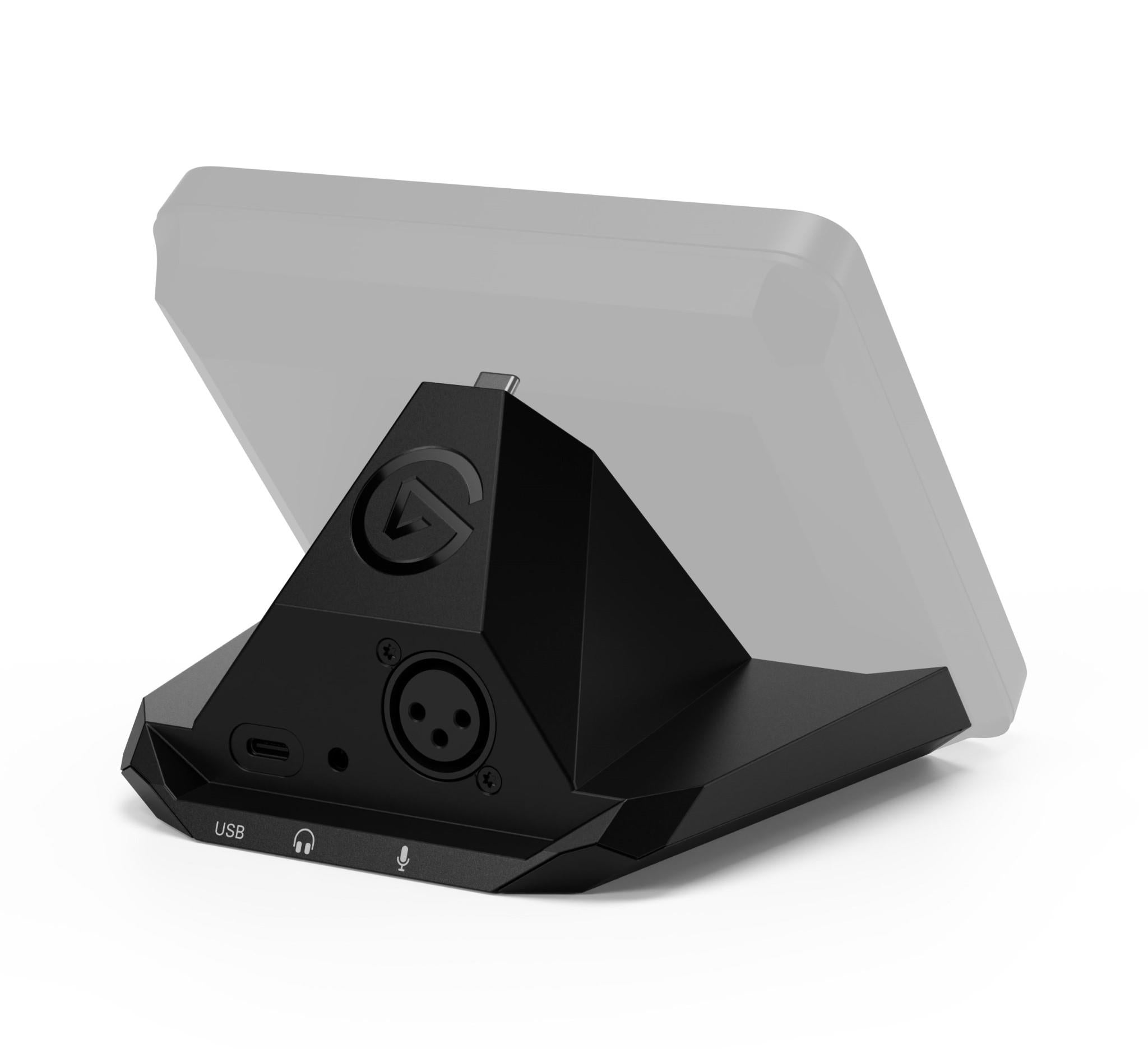

Elgato XLR Dock for Stream Deck +

Two become one

Iconic Stream Deck tech. plus dials and a built-in mic interface. Stream Deck + XLR is your audio mixer. workflow controller. live console anything you want it to be. Sail through tasks and streamline workflows in OBS Studio or Photoshop with a touch. Customize your deck with digital plugins and profiles. In the back. a space-saving interface brings your XLR microphone to life with 75dB of ultra-low-noise gain and phantom power. Stream Deck + XLR brings all your audio controls together not just hardware. but also your apps like Spotify or Discord. So you can mix. monitor. and do just about anything from a single device.

Control anything
From hardware to your apps & tasks

Make it yours
Customize dials. keys. & touch strip however you like

XLR interface
Connect your mic to a computer via Stream Deck +

Sound pro
With up to 75 dB gain. phantom power. & Clipguard

Ultra compact
2-in-1 to save space and reduce cable clutter

Tech Specs
Download Quick Start Guide
FREQUENCY RESPONSE
20 Hz – 20 kHz
DYNAMIC RANGE
100 dB (120 dB with Clipguard)
EQUIVALENT INPUT NOISE (EIN)
-130 dBV at 60 dB gain
GAIN RANGE
0 – 75 dB
PHANTOM POWER
48 V DC. 7 mA
MAX INPUT LEVEL
10 V at 0 dB gain (with Clipguard)
MAX OUTPUT LEVEL
77 mW
RESOLUTION
24-bit
SAMPLE RATE
48 kHz
INTERFACE
USB 2.0. Type-C
DIMENSIONS
137 (W) x 115 (D) x 76 (H) mm | 5.39 x 4.53 x 2.99 in
WEIGHT
169 g | 5.96 oz

In The Box
XLR Dock for Stream Deck +
Quick Start Guide
